Product Information:

  • SPECS:
    Display: 7” color LCD display with Resistance Touch Screen.
    Resolution: 800 x 480
    Serial Baud: 9600, 8, N, 1 (Mini USB connector)
    Waveform: Sine wave
    Test Freq: 50Hz,100Hz,100Hz
    Test Voltage:6.0V, 12V, 24V (p-p)
    Unit Power: Output 6V-2A, Input 100v-240v
    Current: <600 mA
    Dimensions: 175 x 108 x 20 mm
    Weight: 285 g (10.0 Oz)

  • User Manual

  • Return Policy:

    Customer has up to 30 days from date of receipt for return.
    Shipping and handling fee is not refundable. Customer is responsible for shipping costs incurred shipping products back.

$398.50/ea + Free shipping

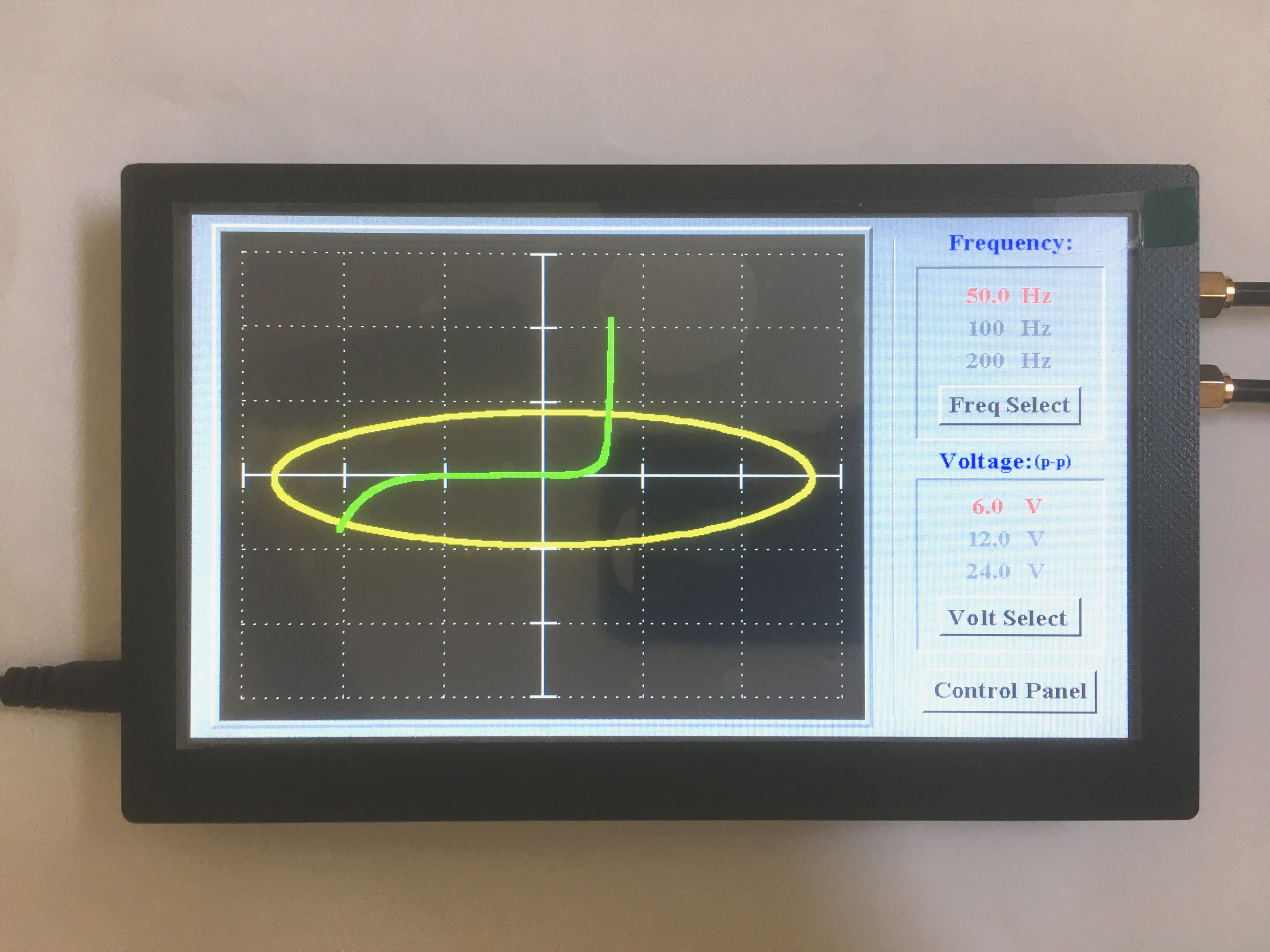

Alaonix 7" Two Channels Digital Curve Tracer Tester with Touch Screen:

Alaonix 7" Two Channels Digital Curve Tracer with Touch Screen, Model 3000 is a small and light device. User can use it to check electronics semiconductor – transistors, diodes, zeners , capacitor and resistor…..

Alaonix 7" Two Channels Digital Curve Tracer Tester Video:

CRT (analog) and LCD (digital) Screen Noise Compare:
