Product Information:

  • SPECS:
    Display: 1.3” BW OLED display.
    Serial Baud: 9600, 8, N, 1
    Waveform: Sine wave
    Test Freq: 100Hz,200Hz,500Hz,1000Hz
    Test Voltage:6V, 12V, 24V (p-p)
    Output: Constant 6V (p-p)

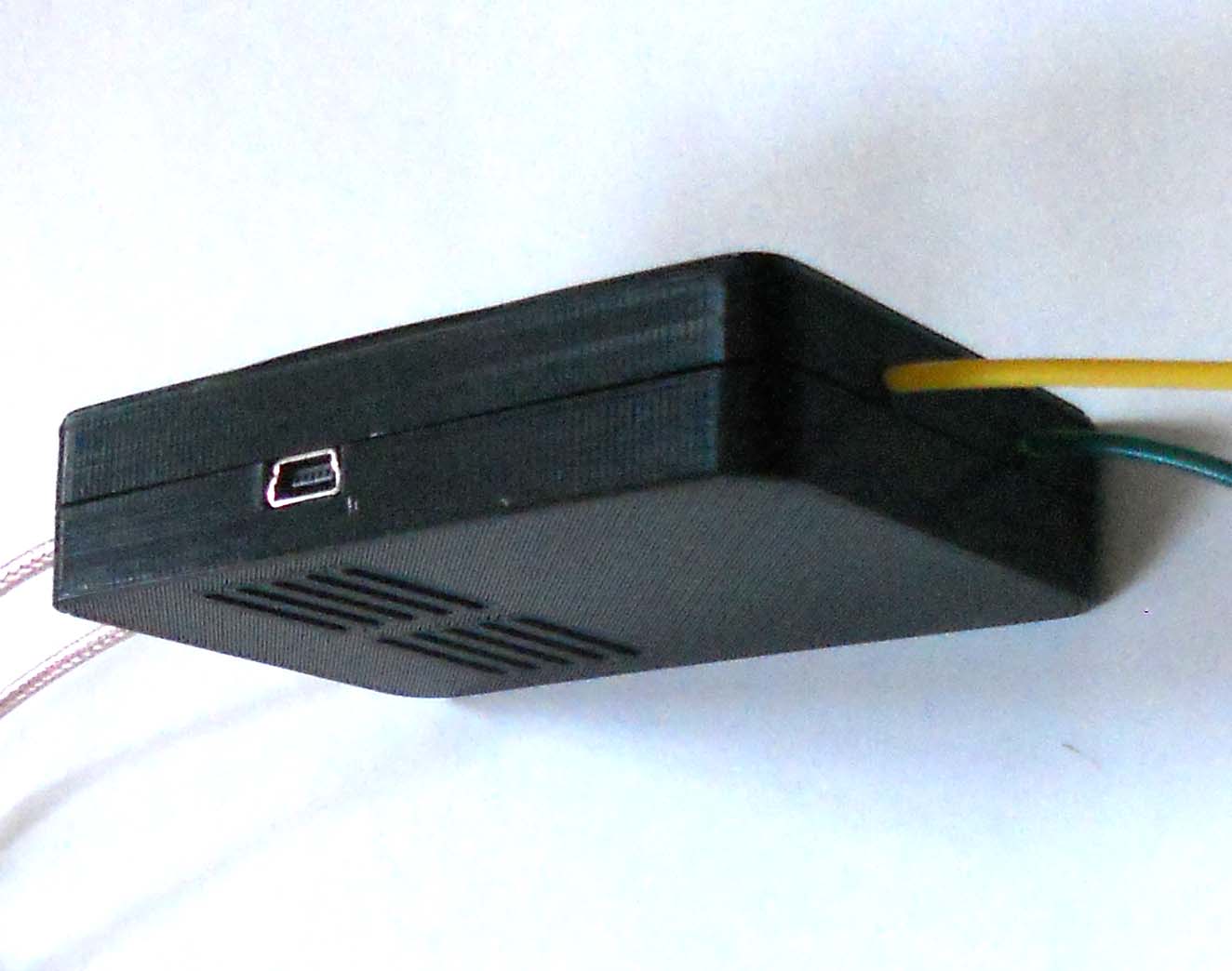

    Unit Power: 5V (Mini USB connector)
    Current: <100 mA
    Dimensions: 78 x 52 x 17 mm
    Weight: 70 g (2.5 Oz)

  • User Manual

  • Return Policy:

    Customer has up to 30 days from date of receipt for return.
    Shipping and handling fee is not refundable. Customer is responsible for shipping costs incurred shipping products back.

$69.50/ea + Free shipping

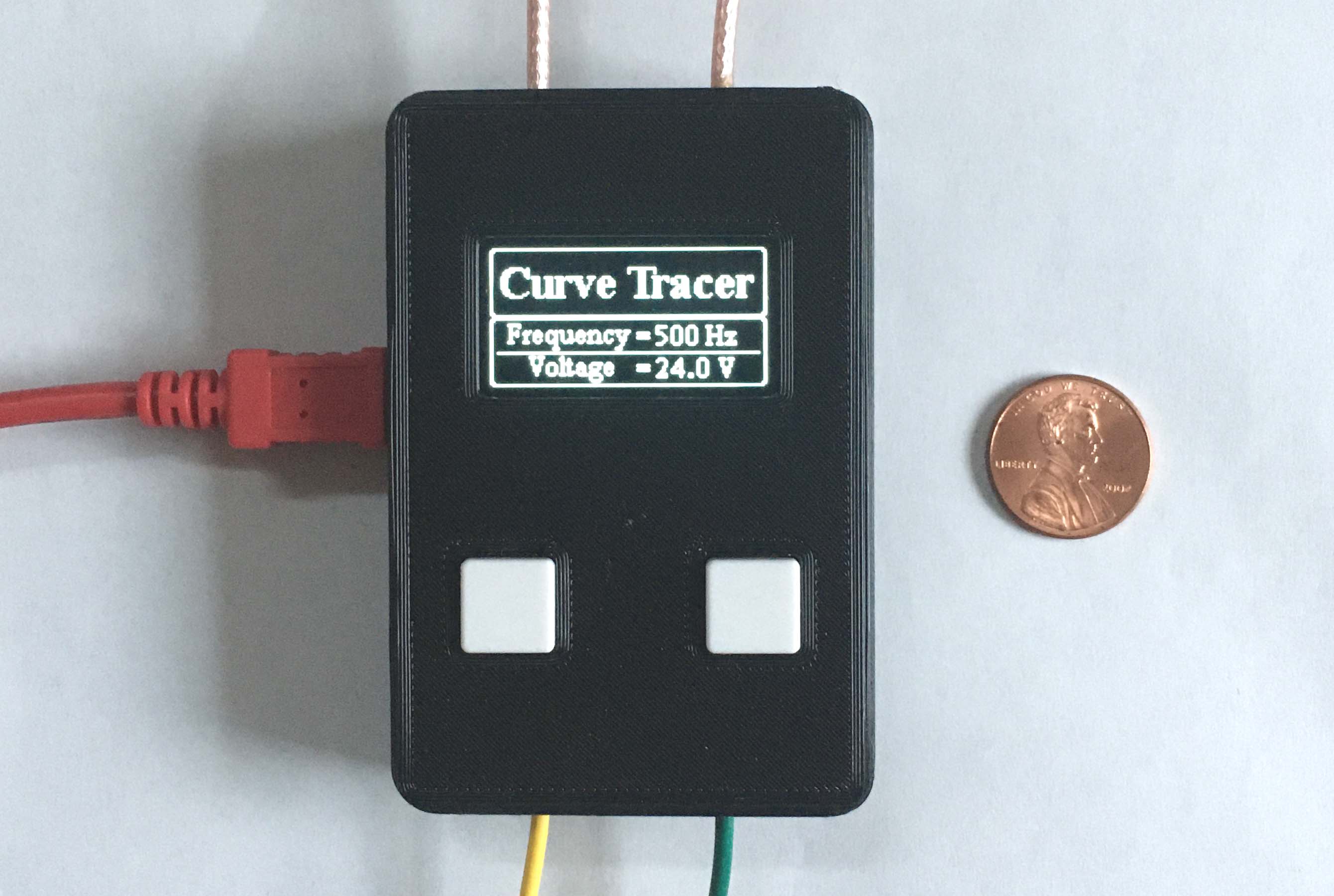

Alaonix Curve Tracer Tester:

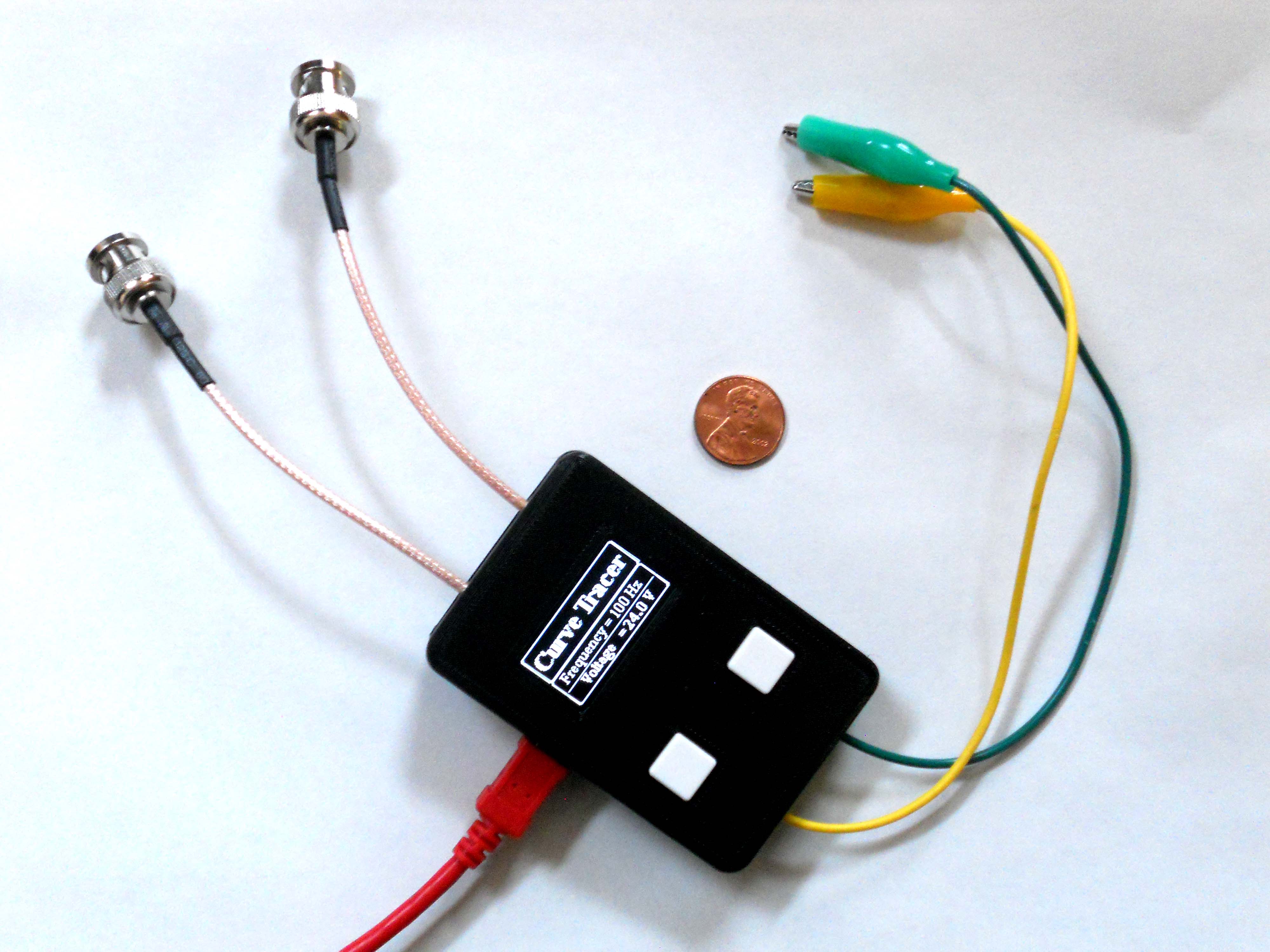

Alaonix Curve Tracer 1.0 is a small and light device. User can use it to check electronics semiconductor – transistors, diodes, zeners , capacitor and resistor….. Connect this device with an oscilloscope capable of being set in XY mode and you have a very great tester.

Alaonix Curve Tracer Tester Video:
