Product Information:

  • SPECS:
    Display: 9” color LCD display with Resistance Touch Screen.
    Resolution: 480 x 800
    Serial Baud: 9600, 8, N, 1 (Inside)
    Waveform: Sine wave
    Test Freq: 20Hz,50Hz,100Hz,200Hz
    Test Voltage:6.0V, 12V, 24V (p-p)
    Unit Power: Output 6V-1A, Input 100v-240v
    Current: <700 mA
    Dimensions: 265 x 185 x 60 mm
    Weight: 600 g (1.20b)

  • User Manual

  • Return Policy:

    Customer has up to 30 days from date of receipt for return.
    Shipping and handling fee is not refundable. Customer is responsible for shipping costs incurred shipping products back.

$598.50/ea + Free shipping

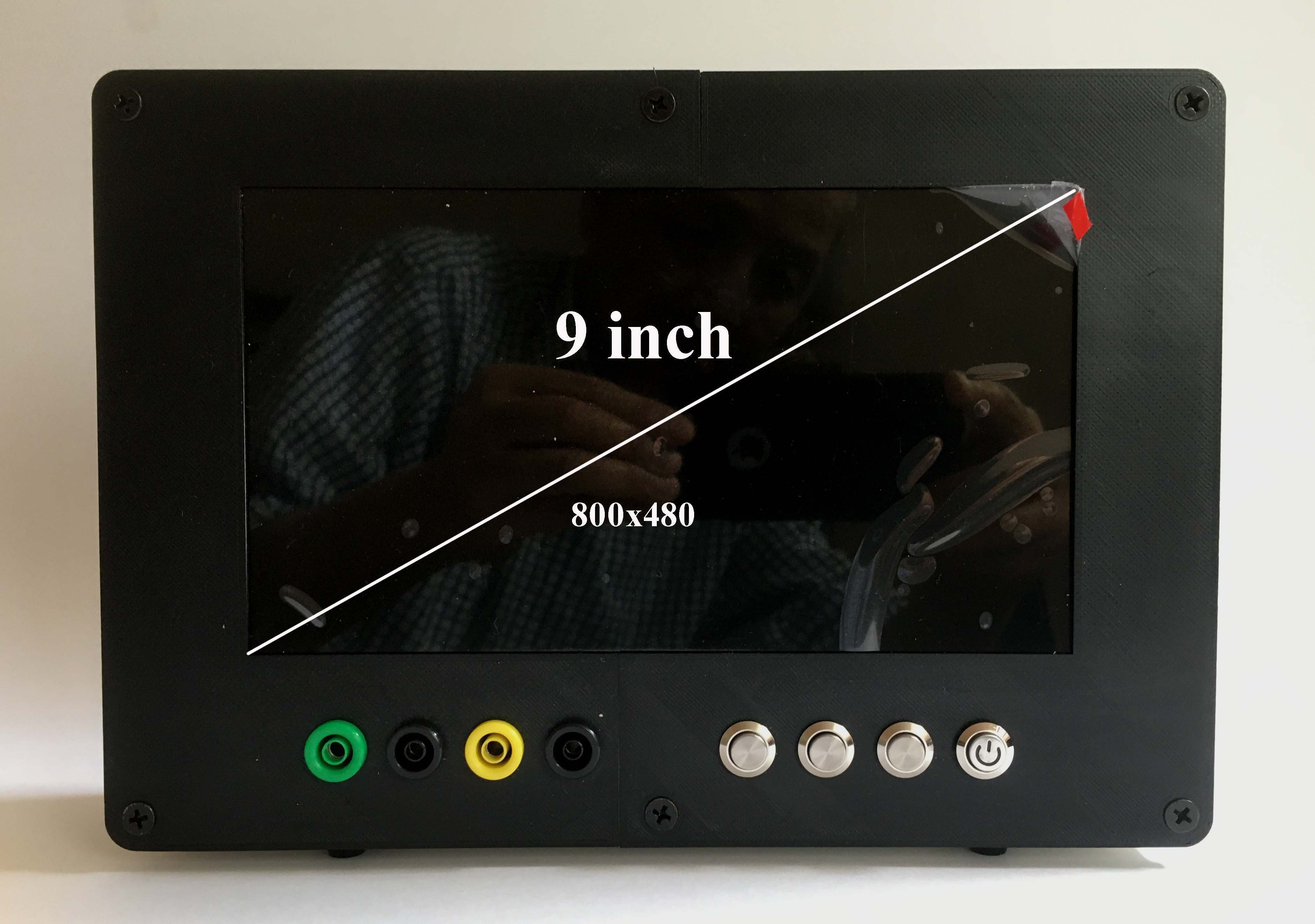

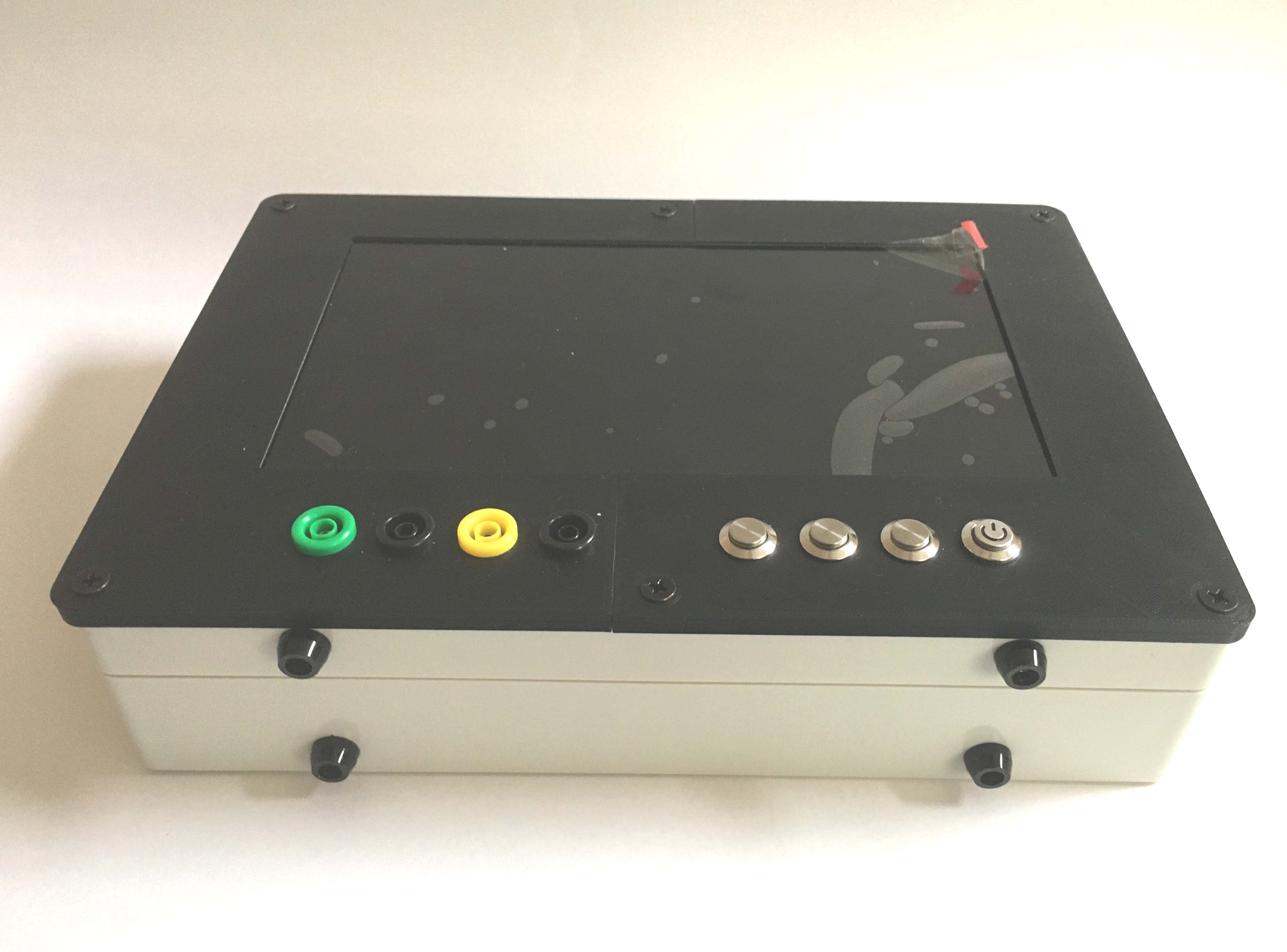

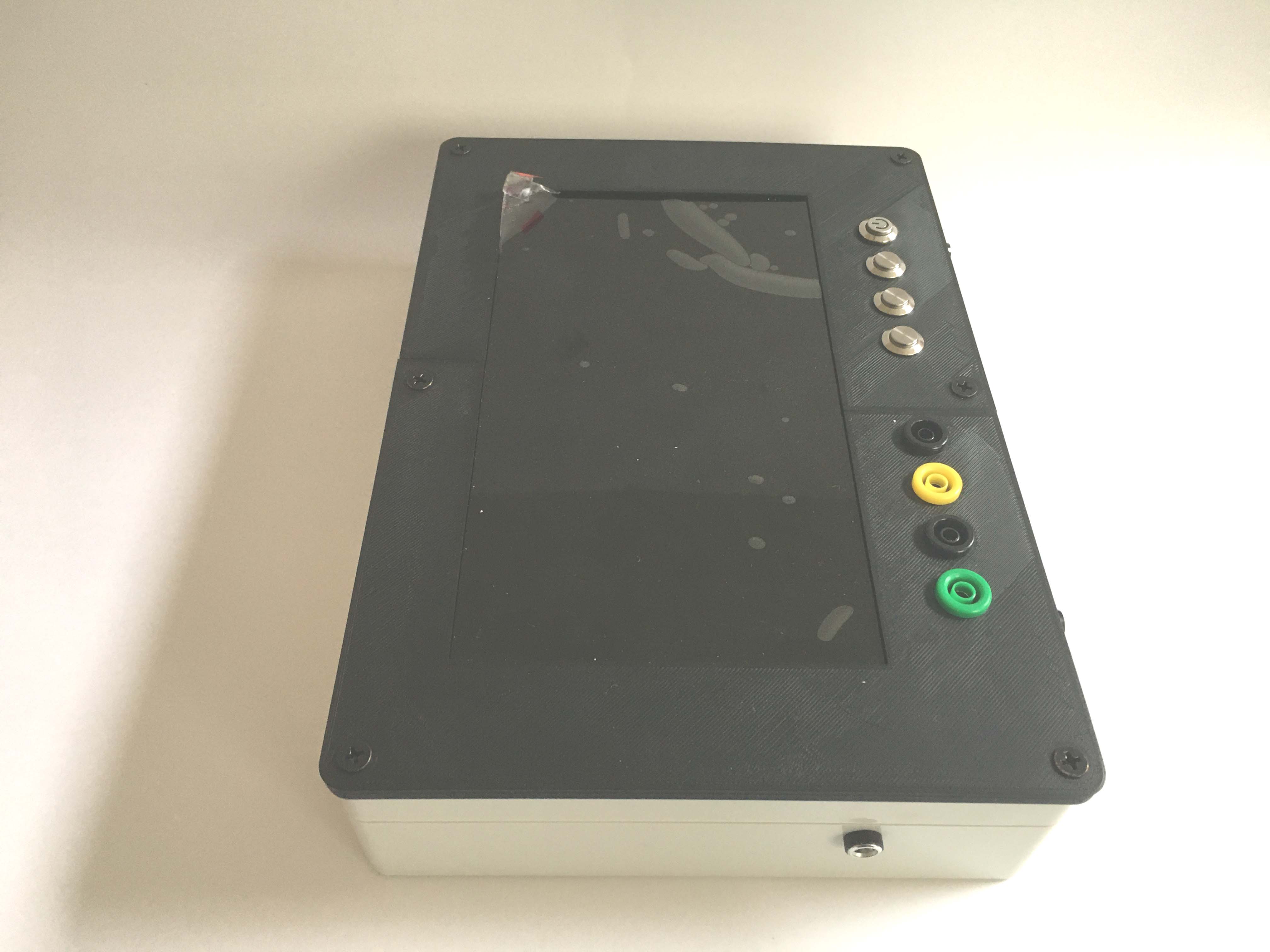

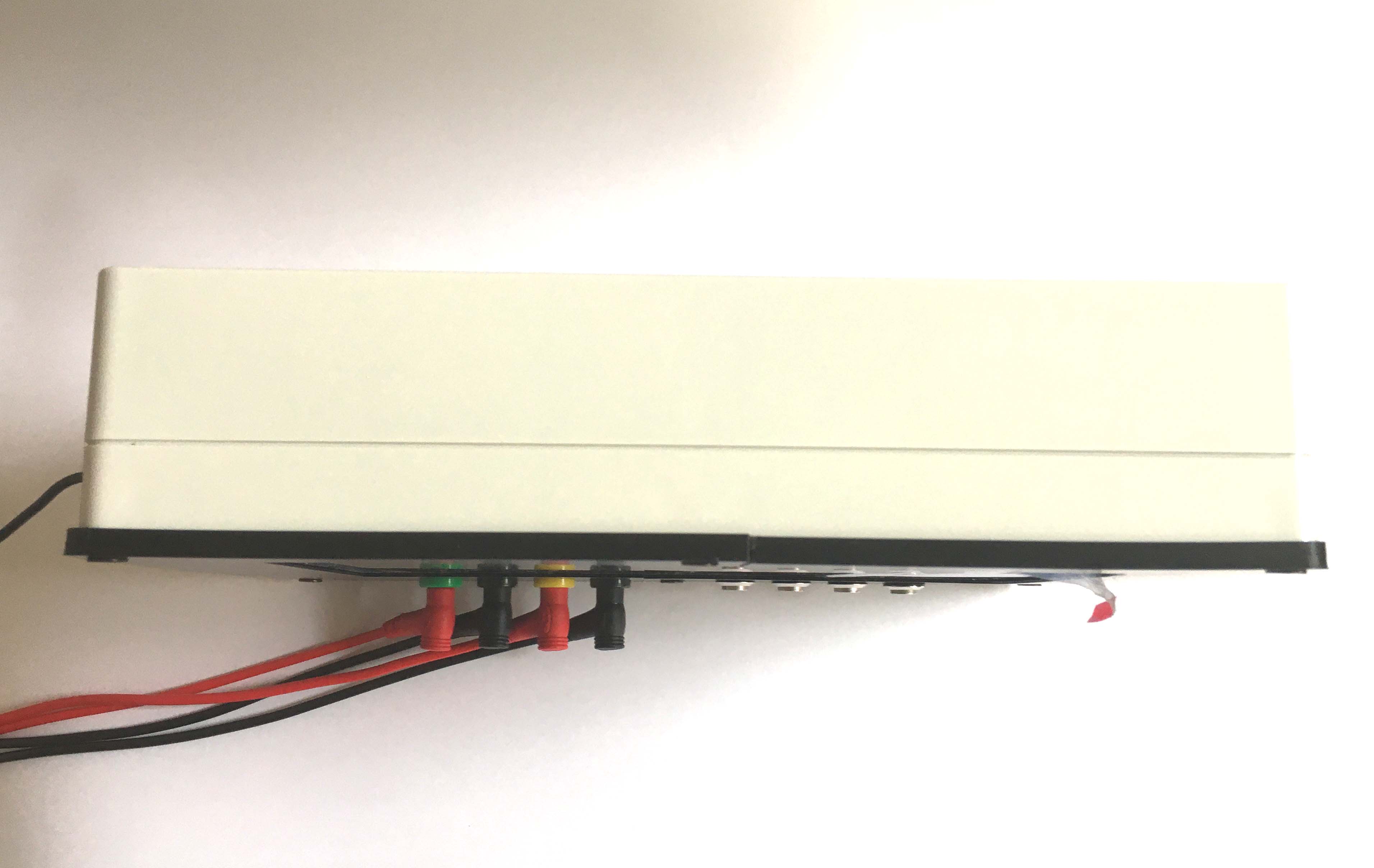

Alaonix 9800 9" Two Channels Digital Curve Tester PCB troubleshooting tool:

Alaonix 9800 9" Two Channels Digital Curve Tester, Model 9800 is a Benchtop device. User can use it to check electronics semiconductor – transistors, diodes, zeners , capacitor and resistor…..

Alaonix 9800 Two Channels Digital Curve Tester Video:

CRT (analog) and LCD (digital) Screen Noise Compare:
