8 Channel Temperature Data Recorder Example Project

  • 8 Channel Temperature Data Logger Test Video

    How to build 8 Channel Temperature Data Logger

    This is Alaonix 256x160 Smart LCD display 8 channel temperature data recorder example project. It uses The DS1307 serial real-time clock (RTC),SHT11 humidity and Temperature sensor and 8x DS18B20 Temp sensor for recording Date, Time, Temperature and Humidity and 8x temperature data.. The project uses Arduino Nano as controller. Below is the project detail information.

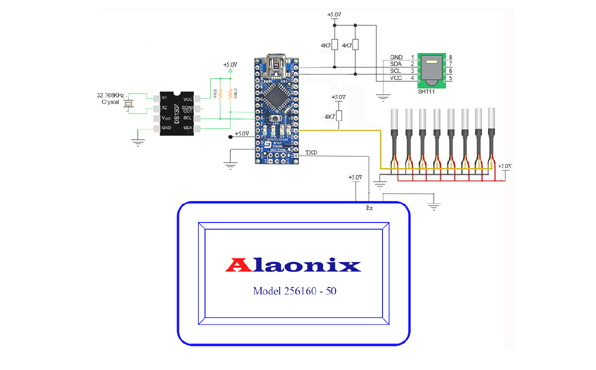

Alaonix 8 Channel Temperature Data Logger Schematic:
